VA20 LTE CAT-1 Compact Size Intelligent Asset Tracker

Experience The Advantage

n  COMPACT SIZE FOR CARGO MONITORING

n  UNBOXING ALARM

n  TEMPERATURE MONITORING

n  HUMIDITY MONITORING

n  DOOR SENSOR MONITORING

n  VIOLENT TRANSPORTATION DETECTION

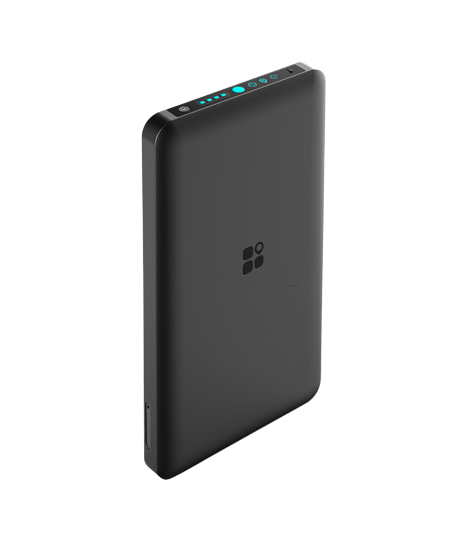

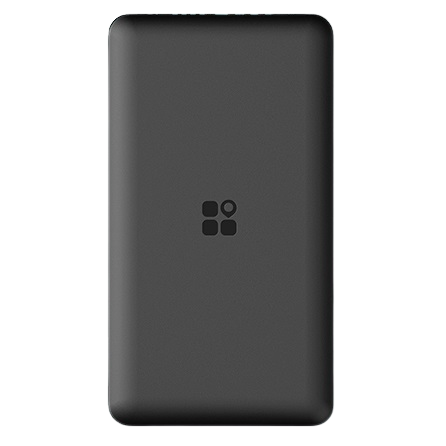

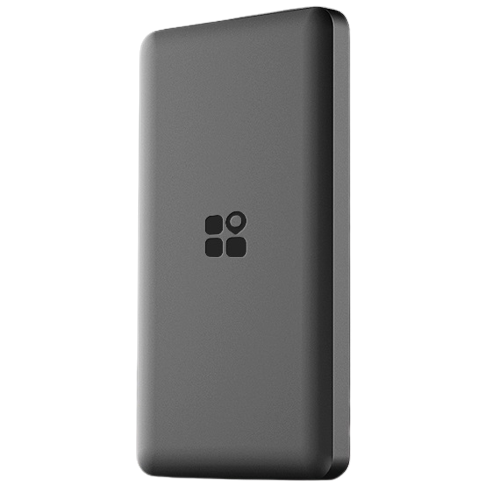

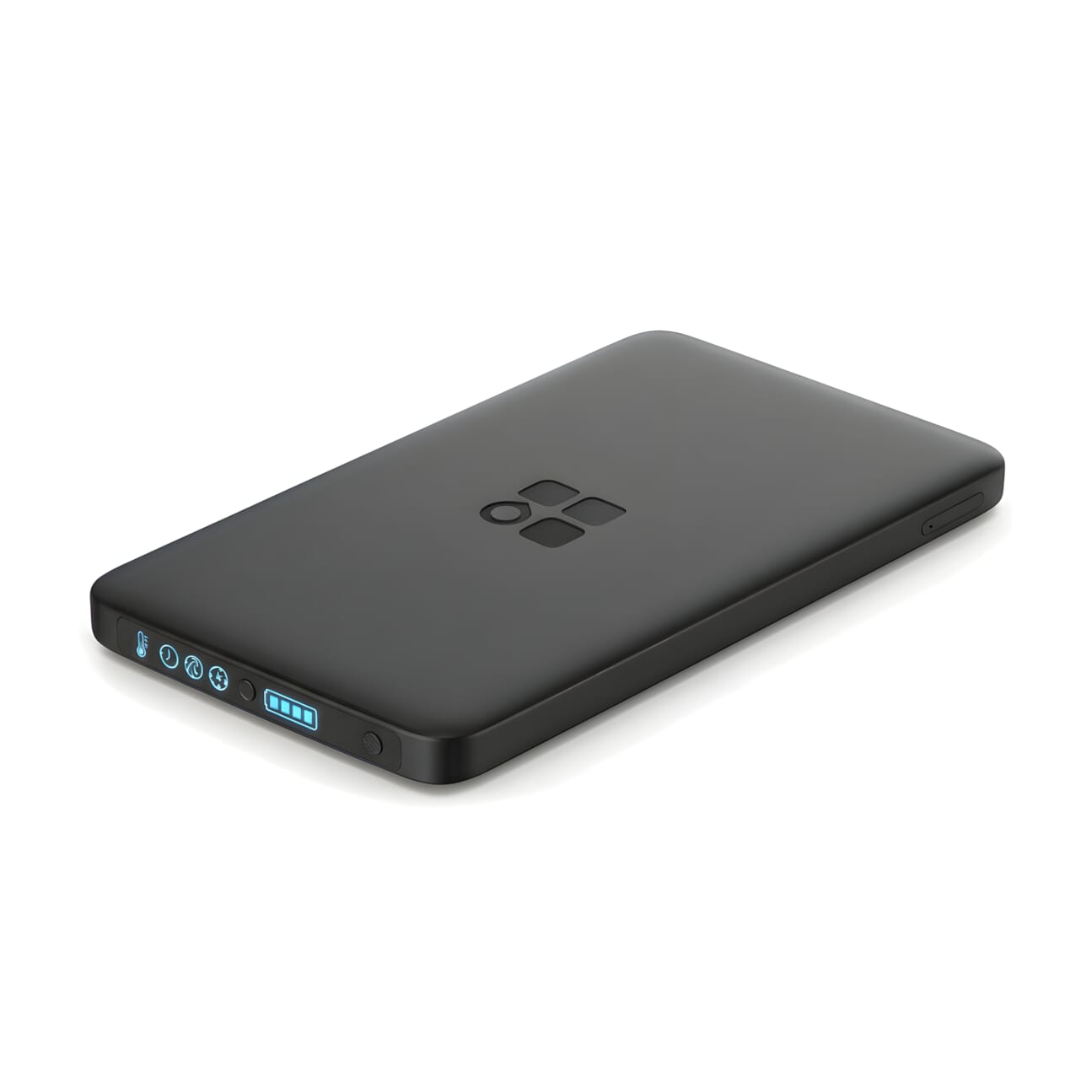

The VA20 is a cutting-edge asset tracker, meticulously crafted to revolutionize asset and cargo transportation management. With its advanced features and robust capabilities, it is the perfect solution for businesses seeking optimal security and real-time monitoring.

Featuring a wide range of positioning technologies, including GPS, Beidou, Wi-Fi, Bluetooth, and LBS, the VA20 ensures accurate and reliable tracking of your valuable assets. Whether they're on the move or stationed at a specific location, you'll have full visibility and control at your fingertips.

What sets the VA20 apart is its array of built-in sensors, designed to enhance functionality and deliver invaluable insights. Equipped with a light sensor, temperature sensor, humidity sensor, Hall sensor, and 3-axis/6-axis sensors, this tracker offers a comprehensive suite of features:

Unboxing Alarm, Temperature Monitoring, Humidity Monitoring, Door Sensor Monitoring, Violent Transportation Detection.

Additionally, the VA20 supports Bluetooth 5.0 communication, opening up a world of possibilities for various applications. Seamlessly connect and integrate with other devices and systems, expanding the capabilities and versatility of the VA20 to meet your specific needs.



GENERAL

Network Technologies

LTE-CAT 1 / GPRS / SMS

Location Technology

66 channel GPS

Operating Voltage

3.7V LiPo Battery


CELLULAR/BANDS

4G LTE-FDD, EMEA VERSION

B1/B3/B5/B8

4G LTE-FDD, LATIN VERSION

B2/B4/B8/B28

GSM/GPRS

900/1800


GPS

GNSS

GPS, BDS

Receiver

66 channels

Location Accuracy

< 10 m

Tracking Sensitivity

-165 dBm

Acquisition Sensitivity

-148 dBm

Cold Start (open sky)

32 seconds

Hot Start (open sky)

1 second

AGPS / Location assistance capable



POWER

Back-up battery

2500mAh / 3.7V LiPo battery

Power Consumption

49 mA @ 3.7 V working


<2.5 mA @ 3.7 V deep sleep






ENVIRONMENTAL

Operating temperature

-20°C to +70°C

Operating humidity

5% to 95%   non-condensing

Ingress Protection   Rating

IP 65


PHYSICAL

Dimensions

112.5 (L) x 62.0(W) x 11.0(H)   mm

Weight

86 g


SENSORS

Light sensor

support

Accelerometer

Support

Gyro

optional

Hall sensor

Optional

Temperature sensor

-40°C - +125°C ±0.3°C precision   0.1°C

Humidity sensor

0-99% RH precision 0.1   ±5%


INDICATORS

Battery power

support

Real-time positioning   mode

support

Cargo monitoring mode

support

Long standby mode

support

Temperature and   humidity

support


BLUETOOTH

Bluetooth 5.0

support
