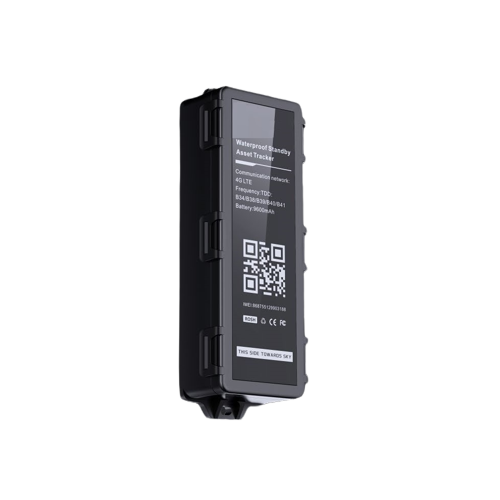

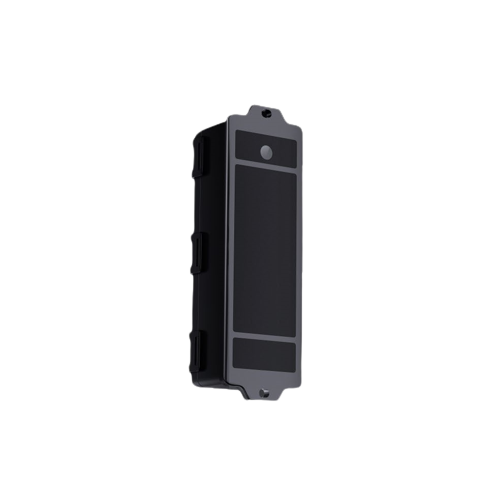

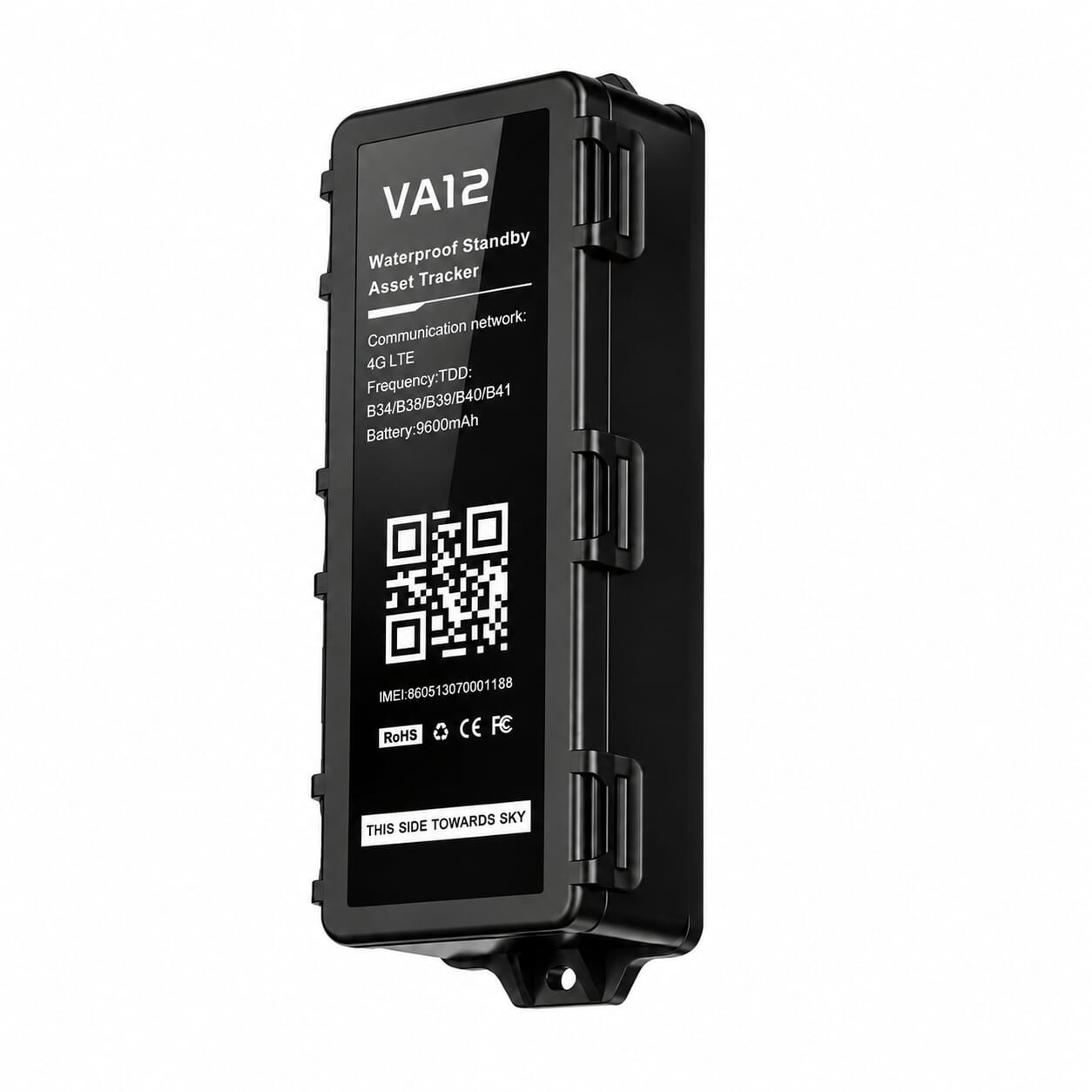

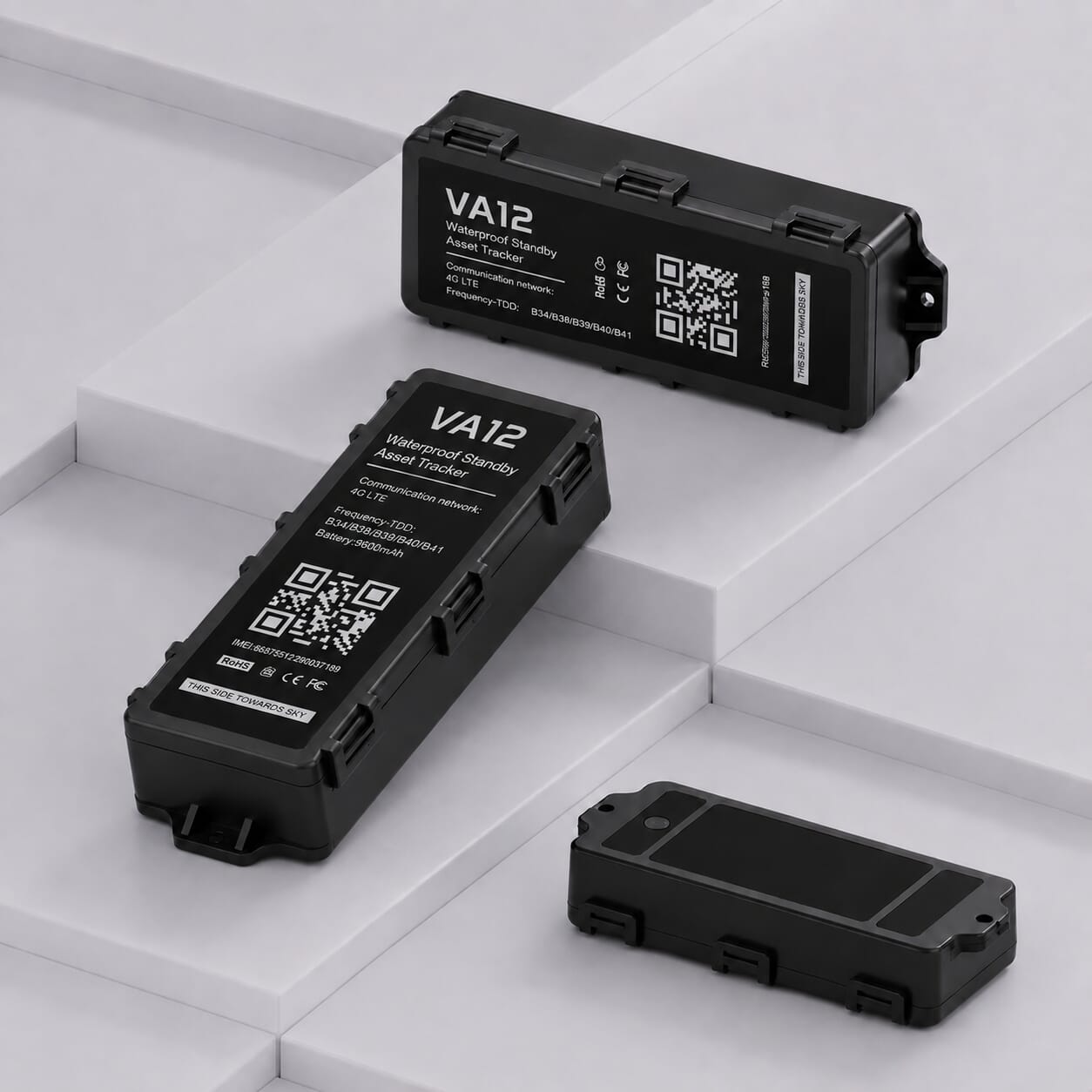

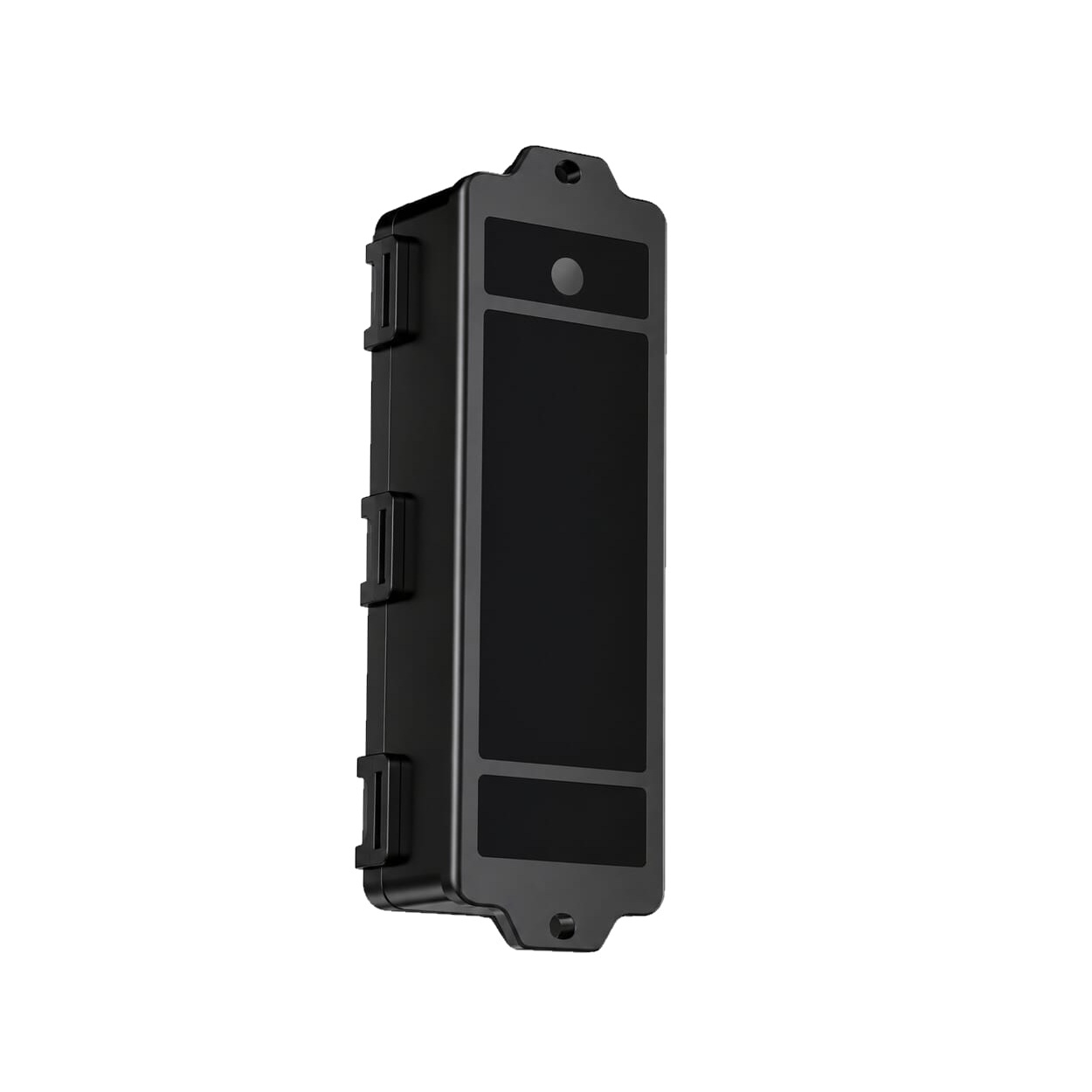

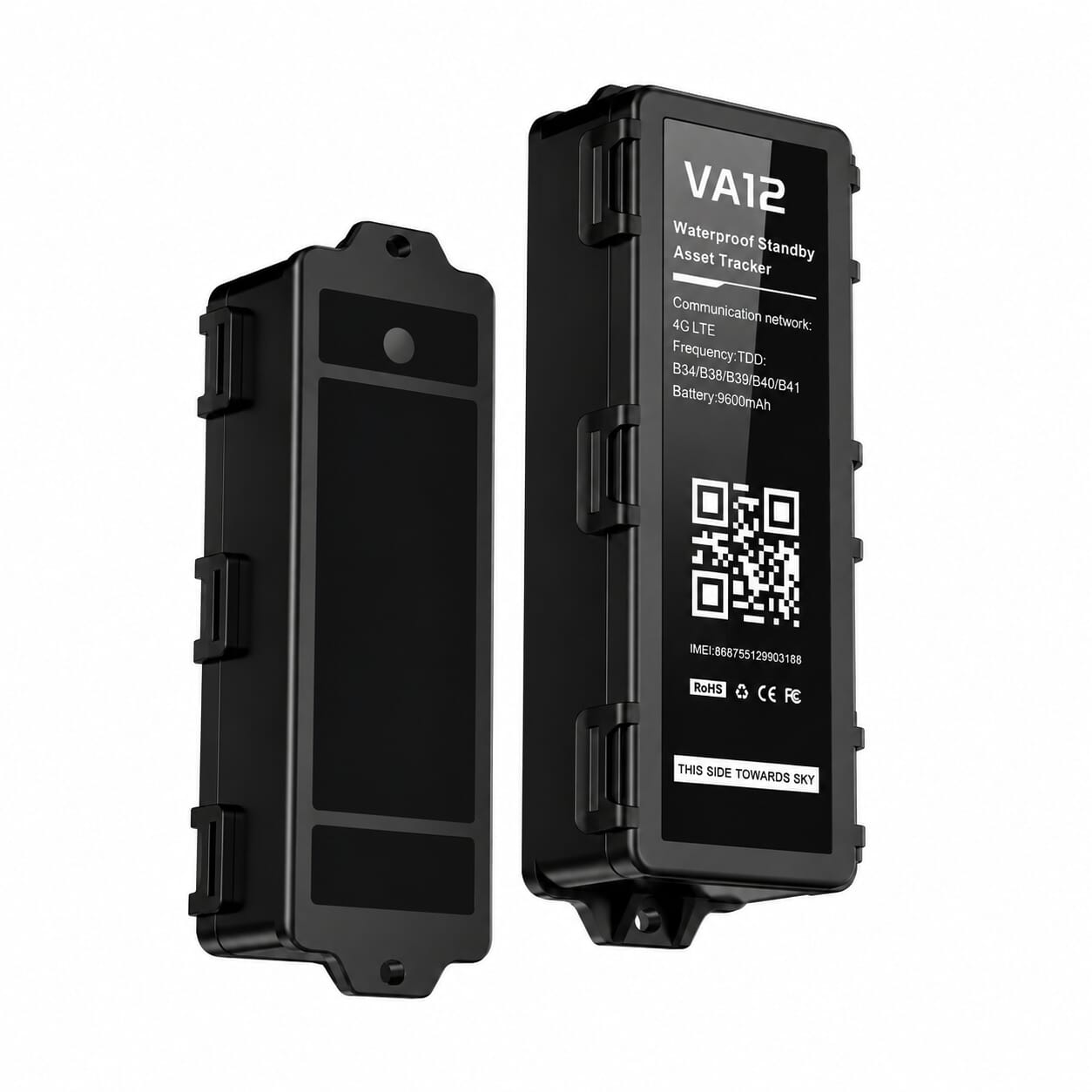

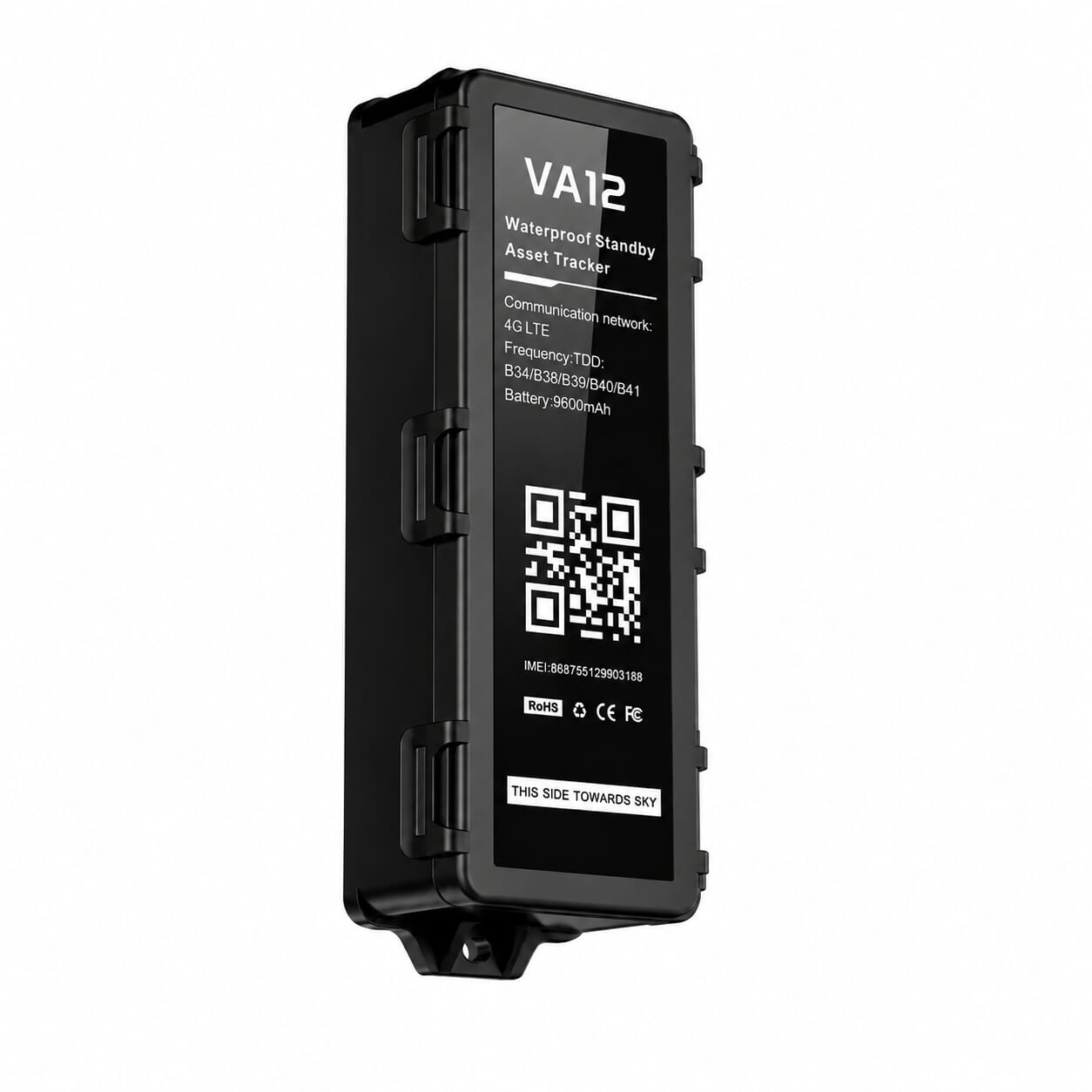

VA12 Long Battery Life Intelligent Asset Tracker

Experience The Advantage

n  MULTIPLE POSITIONING TECHNOLOGY

n  IP67 WATERPROOF

n  SUPER LONG BATTERY LIFE

n  HASSLE-FREE INSTALLATION

n  REMOVAL ALARM

n  RFID CAPABILITY

The Vanguard VA12 employs a powerful combination of Beidou, GPS, Wi-Fi, and base station positioning, ensuring fast and accurate location tracking. With AGPS technology, positioning is expedited, providing real-time visibility of your assets. Equipped with a high-performance 9600mAh lithium manganese battery, the VA12 can perform one positioning operation per day and boasts an impressive battery life of up to 6 years. Say goodbye to frequent maintenance and enjoy uninterrupted asset monitoring.

Super Long Battery Life: Equipped with 9600mAh lithium manganese battery. This device offers an impressive battery life of up to 6 years with 1 position a day.

Easy Installation: The VA12 offers hassle-free installation options. Its strong magnetic adsorption and design with reserved holes for ears allow for flexible mounting in various scenarios.

Removal Alarm: Equipped with a light sensor, triggers alarm notifications when the device is removed. Stay informed and prevent unauthorized access or tampering.

RFID Capability: Enhance your asset inventory processes with the RFID coils. Effortlessly conduct asset inventory and streamline your management workflows for improved efficiency.

Multiple Working Modes: Customize the VA12 to suit your operational needs with multiple working modes. Choose from real-time mode, timing mode, alarm clock mode, and weekly mode, ensuring optimal functionality based on your asset management requirements.



GENERAL

Network Technologies

LTE-CAT 1 / SMS

Location Technology

66 channel GPS

Operating Voltage

3.0 V


CELLULAR/BANDS

4G LTE-FDD, EMEA VERSION

B1/B3/B5/B7/B8/B20/B28

4G LTE-FDD, LATIN VERSION

B2/B3/B4/B5/B7/B8/B28/B66



GPS

GNSS

GPS, BDS

Receiver

66 channel

Location Accuracy

< 10 m

Tracking Sensitivity

-165 dBm

Acquisition Sensitivity

-148 dBm

Cold Start (open sky)

32 seconds

Hot Start (open sky)

1 second

AGPS / Location assistance capable



POWER

Internal battery

9600mAh lithium manganese

Power Consumption

43 mA @ 3 V working


<2 mA @ 3 V deep sleep




ENVIRONMENTAL

Operating temperature

-20°C to +70°C

Operating humidity

5% to 95%   non-condensing

Ingress Protection   Rating

IP 67


PHYSICAL

Dimensions

96.0(L) x 43.0(W) x 24.0(H)   mm

Weight

218 g

Switch

Toggle Switches

Indicators

Red status LED
