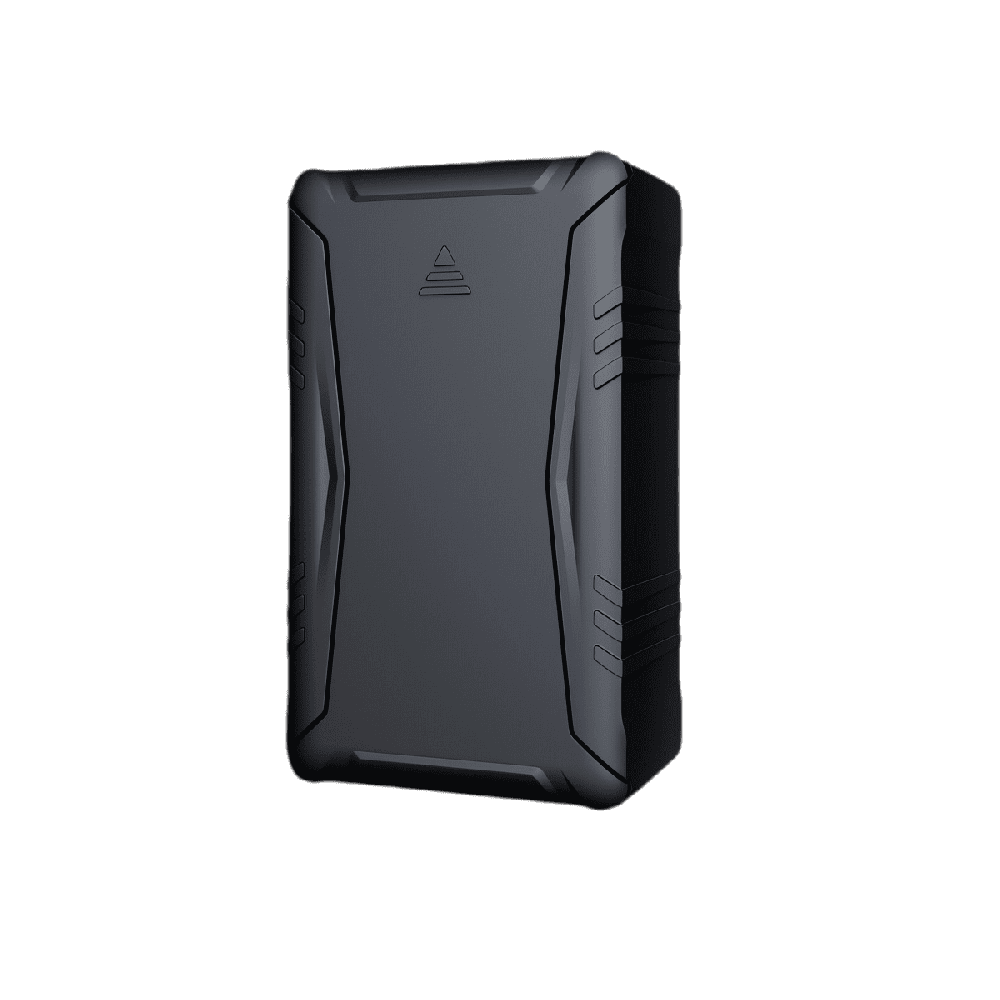

VA11 Long Battery Life Asset Tracker

Experience The Advantage

n  MULTIPLE POSITIONING TECHNOLOGY

n  LONG BATTERY LIFE

n  HASSLE-FREE INSTALLATION

n  REMOVAL ALARM

n  STRONG MAGNETIC ADSORPTION

n  VEHICLE FINANCE & ASSET MANAGEMENT APPLICATIONS


VA11 is a 4G LTE long-life asset tracker designed for vehicle finance, logistics, and asset security applications. Powered by a high-capacity lithium battery and advanced low-power technology, VA11 can operate for up to 2 years on a single deployment, minimizing maintenance efforts and reducing operating costs.



Supporting GPS, BDS, Wi-Fi, and LBS positioning, VA11 provides dependable location visibility for valuable assets in a wide range of environments. Its built-in light sensor enables tamper detection and instant alerts when unauthorized removal is detected, helping users strengthen asset protection and risk management.



With LTE Cat 1 connectivity, strong magnetic installation, OTA upgrades, and multiple working modes, VA11 offers a flexible and efficient tracking solution for vehicle finance risk control, fleet monitoring, cargo management, and fixed asset tracking.



VA11 delivers long-lasting performance, intelligent monitoring, and reliable connectivity, making it an ideal choice for modern asset management applications.




GENERAL

Network Technologies

LTE-CAT 1 / SMS

Location Technology

64 channel GPS

Operating Voltage

3.0 V



CELLULAR/BANDS

EMEA Version

LTE-FDD: B1 / B3 / B5   / B7 / B8 / B20 / B8

LATAM Version

LTE-FDD: B2 / B3 / B4   / B5 / B7 / B8 / B28 / B66





GPS

GNSS

GPS, BDS

Receiver

64 channels

Location Accuracy

< 10 m

Tracking Sensitivity

-165 dBm

Acquisition Sensitivity

-148 dBm

Cold Start (open sky)

32 seconds

Hot Start (open sky)

1 second

AGPS / Location assistance capable




POWER

Internal battery

2800mAh lithium manganese

Power Consumption

40 mA @ 3V working


< 3 uA @ 3V deep   sleep


1 message a day, can last for 2 years




 ENVIRONMENTAL

Operating temperature

-20°C to +70°C

Operating humidity

5% to 95%   non-condensing



PHYSICAL

Dimensions

70.5(L) x 41.5(W) x 27.8(H)   mm

Weight

84g

Switch

Toggle Switches

Magnet

Embedded

Light sensor

Embedded

Indicators

Red status LED
