Fast and Easy GPS Tracker

VA15 OBDII GPS Tracker


Experience The Advantage

n  OBDII PLUG-AND-PLAY DEVICE

n  DRIVER BEHAVIOR DETECTION

n  DEVICE REMOVAL ALARM

n  BLUETOOTH ACCESSORIES EXTENSION(OPTIONAL)

n  EASY CONFIGURATION


VA15 is a 4G GPS Tracker that uses a standard OBDII interface. It is compact and easy to install. It combines 4G CAT 1 with GPS+BDS, AGPS, and LBS dual positioning, making positioning faster more accurate, and convenient for fleet managers or individual users to monitor vehicles remotely. In addition, the device supports Bluetooth 5.1 and can be connected to different sensors such as temperature and humidity sensors, fuel level sensor, and Bluetooth driver IDs. The device is widely used in fleet management, personal vehicle management, UBI insurance, car rental, and car 4S shops.

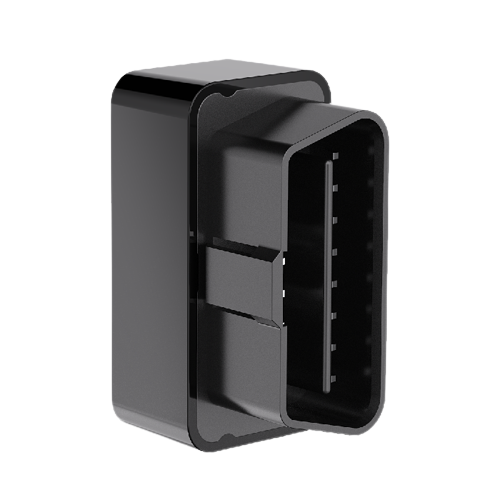

OBDII PLUG-AND-PLAY DEVICE: With a standard OBDII connector, the VA15 OBD tracker requires no complex installation procedures. Simply plug it in, and you're good to go.



DRIVER BEHAVIOR DETECTION: VA15 supports driver behavior monitoring, enabling the tracking of harsh braking, acceleration, and cornering. This feature promotes safer driving practices and helps optimize fleet performance.



DEVICE REMOVAL ALARM: The V15 incorporates the removal alarm/external power disconnect alarm, promptly notifies users when the device is removed from the vehicle. Stay informed and take immediate action to prevent unauthorized access or tampering.



BLUETOOTH ACCESSORIES EXTENSION(OPTIONAL): The device supports Bluetooth 5.1 and can be connected to different sensors such as temperature and humidity sensors, fuel level sensors, and Bluetooth driver IDs. Unlock additional monitoring capabilities and customize the device according to your specific needs.



GENERAL

Network Technologies

LTE-CAT 1 / SMS

Location Technology

66 channel GPS

Operating Voltage

9.0-36.0 V


CELLULAR/BANDS

4G LTE-FDD, EMEA VERSION

B1/B3/B5/B7/B8/B20/B28

4G LTE-FDD, LATIN VERSION

B2/B3/B4/B5/B7/B8/B28/B66



GPS

GNSS

GPS, BDS

Receiver

66 channel

Location Accuracy

< 10 m

Tracking Sensitivity

-165 dBm

Acquisition Sensitivity

-148 dBm

Cold Start (open sky)

32 seconds

Hot Start (open sky)

1 second

AGPS / Location assistance capable



POWER

Internal battery

90mAh @3.7V Li-Po battery

Power Consumption

25 mA  working


<1 mA  deep sleep



ENVIRONMENTAL

Operating temperature

-20°C to +70°C

Operating humidity

5% to 95%   non-condensing


PHYSICAL

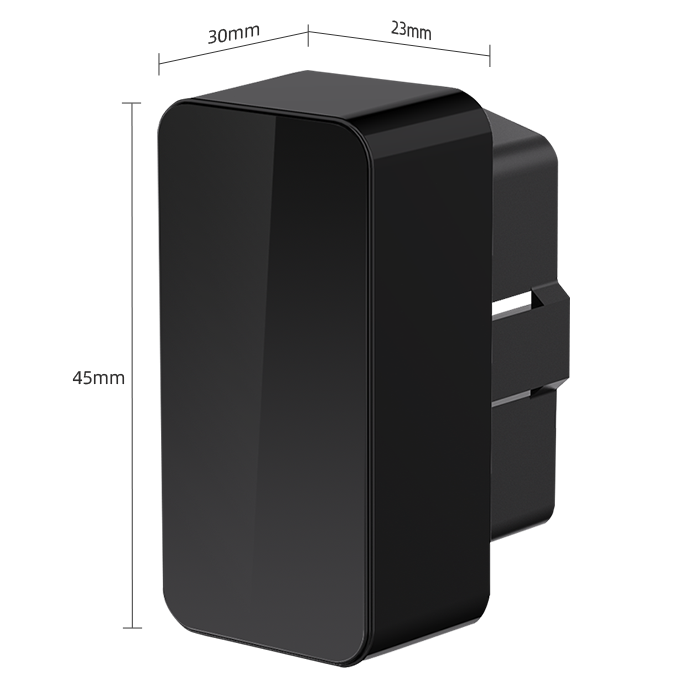

Dimensions

45.0(L) x 23.0(W) x 30.0(H)   mm

Weight

30 g

Indicators

GPS status(Blue LED),   Network status(Green LED)

Bluetooth

Onboard, optional
