VC10 LTE CAT-1 Compact Size GPS Tracker

Experience The Advantage

n  4 WIRES DEVICE

n  IGNITION DETECTION

n  SOS PANIC BUTTON INPUT

n  STARTER INHIBITS

n  EXTERNAL POWER DETECTION

n  WIDE OPERATION VOLTAGE

n  HIGH SENSITIVITY GPS

n  OFF-LINE DATA STORAGE

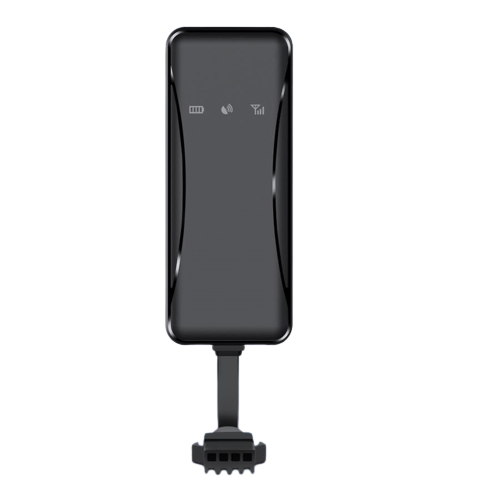

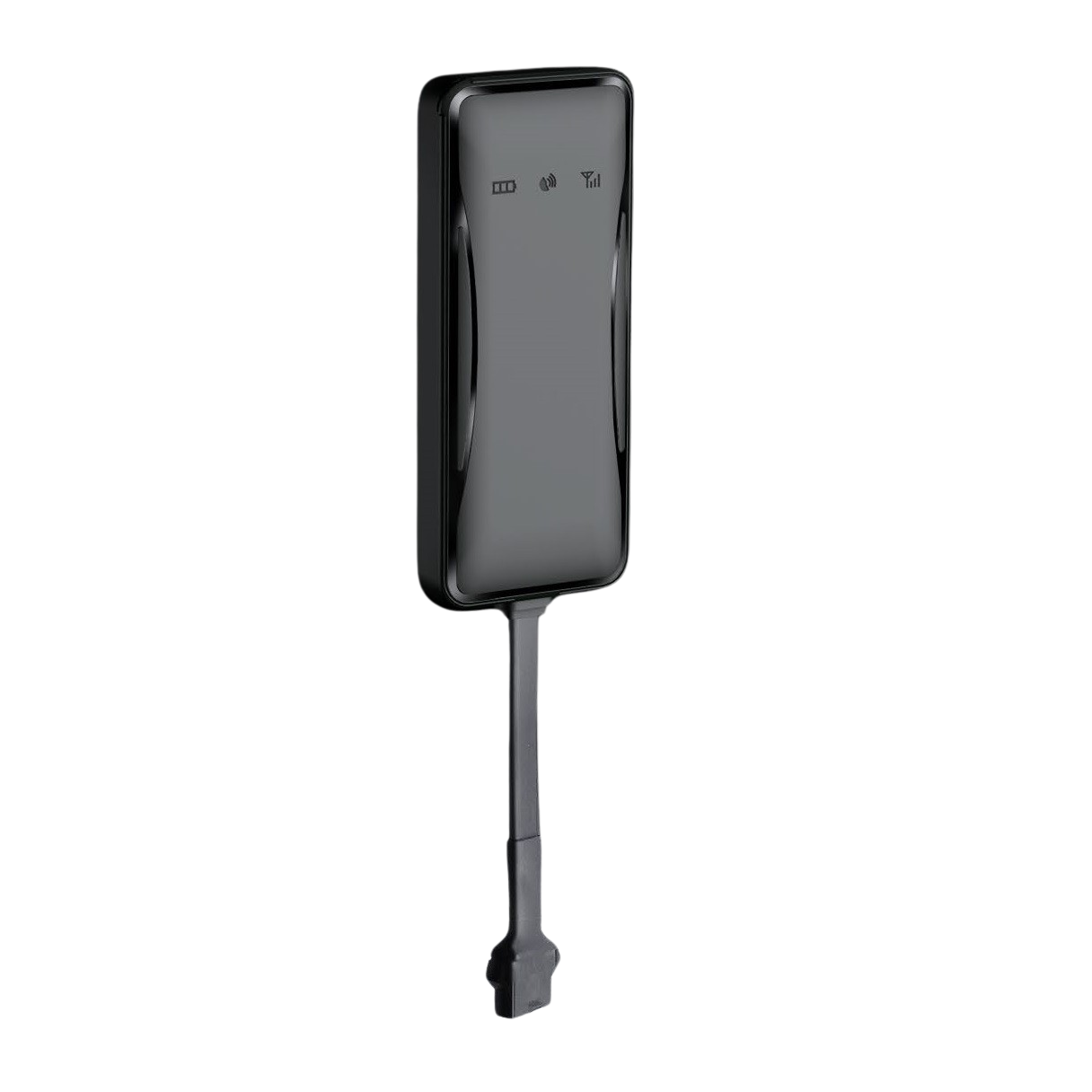

VC10 is a slim design easily fitted GPS tracker with internal GSM and GPS antennas, flash memory, integrated backup battery, accelerometer, ACC inputs and digital output.

With its wide voltage input range of 9-90V, it is suitable for various motors. It was designed for light commercial vehicles and passenger cars tracking in insurance telematics, rental and car sharing, recovery of stolen cars, public safety and courier delivery services, taxi, corporate fleets, motorcycles, etc.

Equipped with a built-in 25*25mm large-size GPS antenna, the VC10 demonstrates excellent GPS capability, ensuring strong signal reception and accurate positioning.

 In addition to its positioning capabilities, the VC10 offers a range of useful features. It supports remote fuel and electricity cutoff remotely. The device also provides power outage alarm, vibration alarm, displacement alarm, and ACC detection functions, enhancing security and alerting users to potential incidents or unauthorized activities.

 Overall, the VC10 is a versatile and reliable vehicle tracking and monitoring solution, providing accurate positioning, robust functionality, and essential security features.


GENERAL

Network Technologies

LTE-CAT 1 / GPRS / SMS

Location Technology

66 channel GPS

Operating Voltage

9V – 90V


CELLULAR/BANDS

4G LTE-FDD, EMEA VERSION

B1/B3/B5/B8

4G LTE-FDD, LATIN VERSION

B2/B4/B8/B28

GSM/GPRS

900/1800


GPS

GNSS

GPS, BDS

Receiver

66 channel

Location Accuracy

< 10 m

Tracking Sensitivity

-165 dBm

Acquisition Sensitivity

-148 dBm

Cold Start (open sky)

32 seconds

Hot Start (open sky)

1 second

AGPS / Location assistance capable



POWER

Input voltage range

9 - 90 V DC with   overvoltage protection

Back-up battery

55mAh / 3.7V LiPo   battery

Power Consumption

25 mA @ 12V working


<10 mA @ 12V static


<5 mA @ 12V deep sleep


ENVIRONMENTAL

Operating temperature

-40°C to +70°C

Operating humidity

5% to 95%   non-condensing

Ingress Protection   Rating

IP 65


PHYSICAL

Dimensions

79.0(L) x 33.3(W) x 12.5(H)   mm

Weight

30 g


COMPREHENSIVE I/O

Power supply

9V – 90V

Ground

Ground connection

Ignition

Ignition detection

Digital Output

For relay connection

Status LEDs

GPS, cellular, power

SIM

Nano-SIM
